Froth-Pak™ 630 is a high-capacity, professional-grade closed-cell spray foam insulation kit built for larger jobs that require greater coverage and long-lasting performance. This two-component system is designed to seal, insulate, and create a continuous air barrier across a wide range of applications. With a theoretical yield of 630 board feet (at 1” thickness), this kit is ideal for contractors handling larger projects such as full-room insulation, extensive air sealing, or multi-area jobsite work.
The closed-cell foam expands and cures into a rigid, high-density insulation layer, helping block air movement while also adding strength to the structure. With an R-value of approximately 6.2 per inch, it delivers strong thermal insulation while helping reduce moisture intrusion, mold growth, and airborne allergens. Froth-Pak 630 features an ergonomic dispensing system designed for consistent, on-ratio application with minimal waste. Its flexible hose and controlled output make it easier to cover larger areas while maintaining precision. The fast-curing formula allows for efficient installation and jobsite turnaround, with re-entry possible after about one hour when properly ventilated.
Why Choose Froth-Pak 630:
- Closed-cell foam for maximum insulation and air sealing performance
- High-yield kit for larger jobs

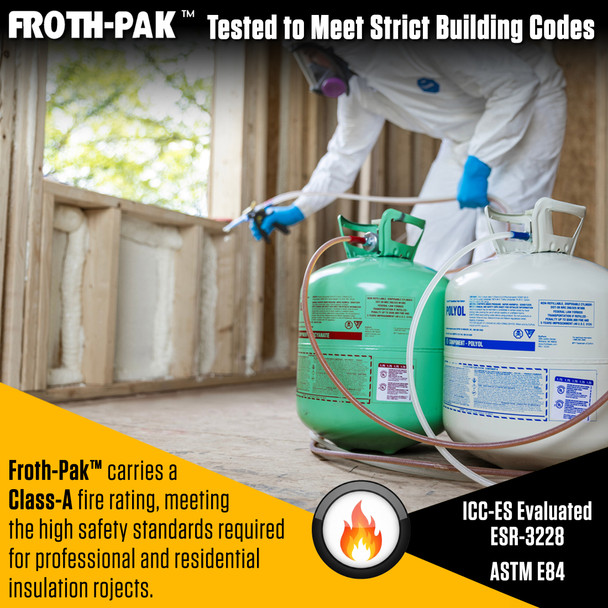

- Class A fire-rated foam (up to 2” thickness)
- Applies up to 2” thick in one pass
- Consistent flow with minimal overspray
- Strong adhesion to common construction materials
- Helps meet air barrier and energy efficiency goals
Features & Benefits
- Closed-Cell Insulation Performance: Expands into a dense, rigid closed-cell foam; creates a durable air barrier and adds structural strength.
- High Thermal Efficiency: Delivers approximately R-6.2 per inch; helps reduce heat loss and improve energy efficiency.
- Air Sealing & Moisture Control: Fills gaps, cracks, and penetrations; helps block air infiltration and reduce moisture, mold, and allergens.
- Professional Dispensing System: Ergonomic gun with anti-crossover nozzles; supports consistent flow, proper mixing, and minimal overspray.
- Fast Application & Cure: Applies up to 2 inches in a single pass; tack-free in seconds with re-entry in about 1 hour (with ventilation).
- Strong Adhesion: Bonds to wood, masonry, metal, drywall, rigid foam, and more.
- Class A Fire-Rated Foam: Suitable for a wide range of residential and commercial applications when used as directed.
- Portable All-in-One Kit: Includes pressurized cylinders, hose, and dispensing gun; ready to use on the jobsite.
Technical Data
- Foam Type: Two-component polyurethane spray foam (closed-cell)
- Density: ~1.75 lb/ft³
- R-Value:
- ~6.2 per inch (aged)
- ~12.2 at 2 inches
- Theoretical Yield (1” thickness):
- Froth-Pak 630: 630 board feet
- Application Thickness: Up to 2 inches per pass
- Cure Time: ~30 seconds tack-free; re-entry after approx. 1 hour with proper ventilation
- Air Leakage: Creates an effective air barrier when applied correctly
- Water Vapor Permeance:
- ~5.4 perms @ 1”
- ~3.1 perms @ 2”
- Color: Cream (typical cured foam)
- Certifications: ICC listed, UL Classified, LEED v4 compliant
Recommended Applications
- Air Sealing & Insulation: Wall and attic penetrations; rim joists and sill plates; crawlspaces and basements
- Building Envelope Sealing: Roof and wall junctions; parapet walls; flash-and-batt applications
- Mechanical & Electrical: HVAC penetrations; plumbing openings; electrical conduit gaps
- General Gap Filling: Cracks, crevices, expansion joints, and irregular cavities
Application Details
Surface Compatibility: Adheres to wood, masonry, metal, drywall, rigid foam, and other common construction materials.
Use Conditions:
- Read all instructions and SDS before use
- Follow local building codes and guidelines
- For exterior use, apply a UV-protective coating after curing
Application Guidelines:
- Apply in layers up to 2 inches thick per pass
- Avoid overfilling confined spaces due to expansion
- Maintain proper ventilation during and after application
Curing & Re-Entry:
- Tack-free in seconds
- Re-entry allowed after approximately 1 hour with proper ventilation
Safety Requirements:
- Use PPE: gloves, coveralls, eye protection, and respirator
- Avoid skin contact; cured foam must be mechanically removed
- Do not apply near open flames or high-heat surfaces
