• Seamless Monolithic Air & Vapor Barrier: Creates a fully adhered membrane that helps reduce air leakage, moisture intrusion, and vapor transmission throughout exterior wall assemblies.
• Spray or Roller Applied for Faster Installation: Fluid-applied installation helps speed up projects compared to traditional sheet-applied systems.
• UV Resistant Formula: Designed to withstand temporary UV exposure during construction and suitable for open-joint rain screen assemblies.
• Helps Improve Building Envelope Efficiency: Reduces uncontrolled air infiltration and exfiltration to support energy-efficient wall systems.
• Excellent Crack Bridging Performance: Flexible elastomeric membrane accommodates minor substrate movement.
• Compatible with Multiple Substrates: Suitable for exterior sheathing, concrete block, poured concrete, and wood substrates.
• NFPA 285 Compatible Assemblies: Formulated for assemblies requiring NFPA 285 fire testing compliance.
• Fully Adhered Waterproofing Protection: Helps protect wall assemblies from water penetration while maintaining long-term adhesion.
• High Air Barrier Performance: Tested to ASTM E2178 and ASTM E2357 standards for low air leakage.
• Commercial-Grade Building Envelope Solution: Ideal for schools, hospitals, multifamily buildings, offices, and other demanding projects.

• Exterior above-grade wall assemblies
• Commercial building envelopes
• Multifamily construction
• Rain screen wall systems
• Concrete block walls
• Poured concrete walls
• Exterior sheathing panels
• Wood wall assemblies
• Institutional and healthcare facilities
• Educational buildings
• Office buildings
• Mixed-use developments
• High-performance energy-efficient wall systems

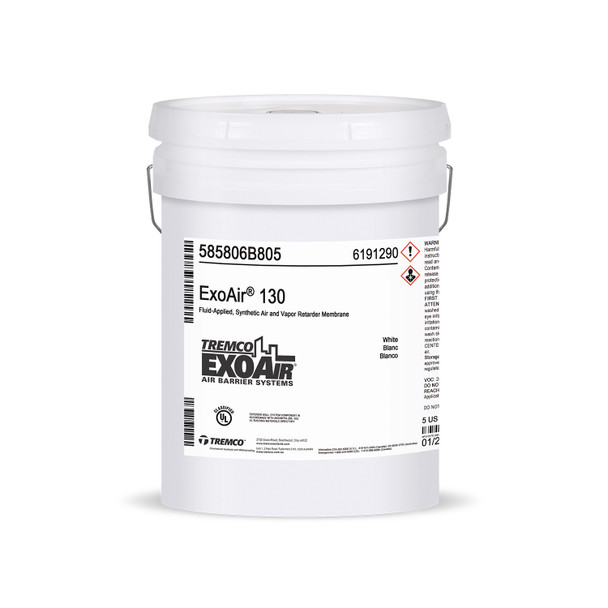

ExoAir 130 is designed for application to clean, dry, properly prepared substrates. The membrane can be applied using spray equipment or rollers depending on project requirements and jobsite conditions.

Typical Substrates:

• Exterior gypsum sheathing
• Concrete block
• Poured concrete
• Wood substrates

Compatible Flashing & Transition Products:

• ExoAir 110
• ExoAir 110AT
• Dymonic 100
• ExoAir DualFlash

Application Thickness:

• Apply at approximately 70 wet mils to achieve a 40 dry mil cured membrane thickness.

Dry & Cure Guidance:

• Allow the material to fully dry before rain exposure or additional construction activity.

Limitations:

• Do not apply to damp, contaminated, frost-covered, or frozen substrates.
• Membrane should not remain permanently exposed.
• Install façade or cladding within the recommended exposure period.
